708-RVC-H, SOUL SeeLeveL, Garnet
$346.33

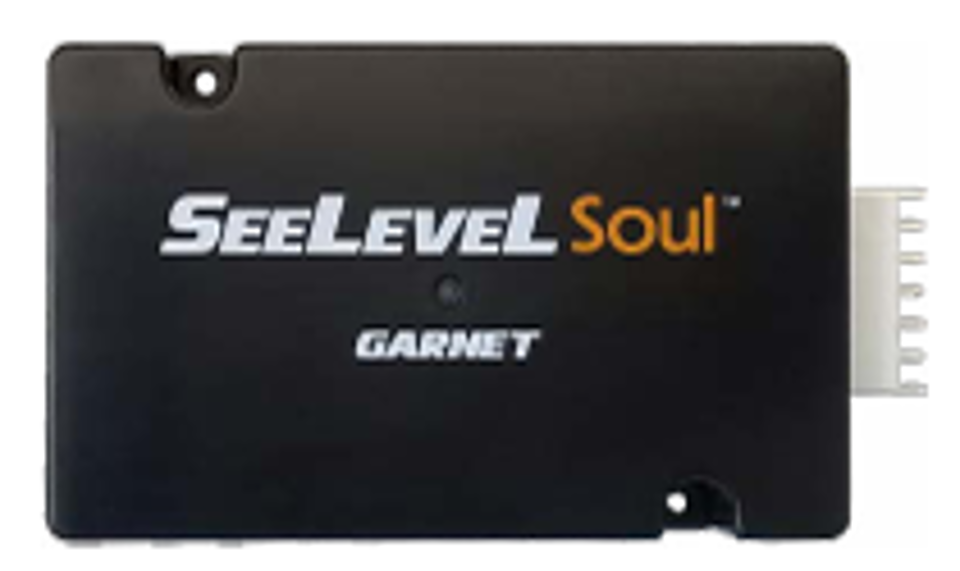

The Garnet SeeLeveL Soul 708-RVC H is an RV-C compatible tank monitoring module designed for integration with RV multiplex systems. It collects tank level data from SeeLeveL sender panels and transmits the information over the RV-C bus without requiring a dedicated display.
The module can monitor up to seven holding tanks—two fresh, three grey, and two black tanks—and can also monitor LPG level and RV battery voltage. Configuration is completed through the SeeLeveL Soul Configuration Tool using the built-in Micro-USB connection.
Key Features
- RV-C / CAN bus integration
- Supports up to 7 holding tanks
- Compatible with SeeLeveL sender panels
- LPG level monitoring capability
- RV battery voltage monitoring
- Built-in sender and wiring diagnostics
- Micro-USB configuration interface
- Compact concealed-mount design
- Operates from 11–16V DC
- Less than 200mA current draw
- Approx. 3.6 × 2.3 × 0.98 in. module size
