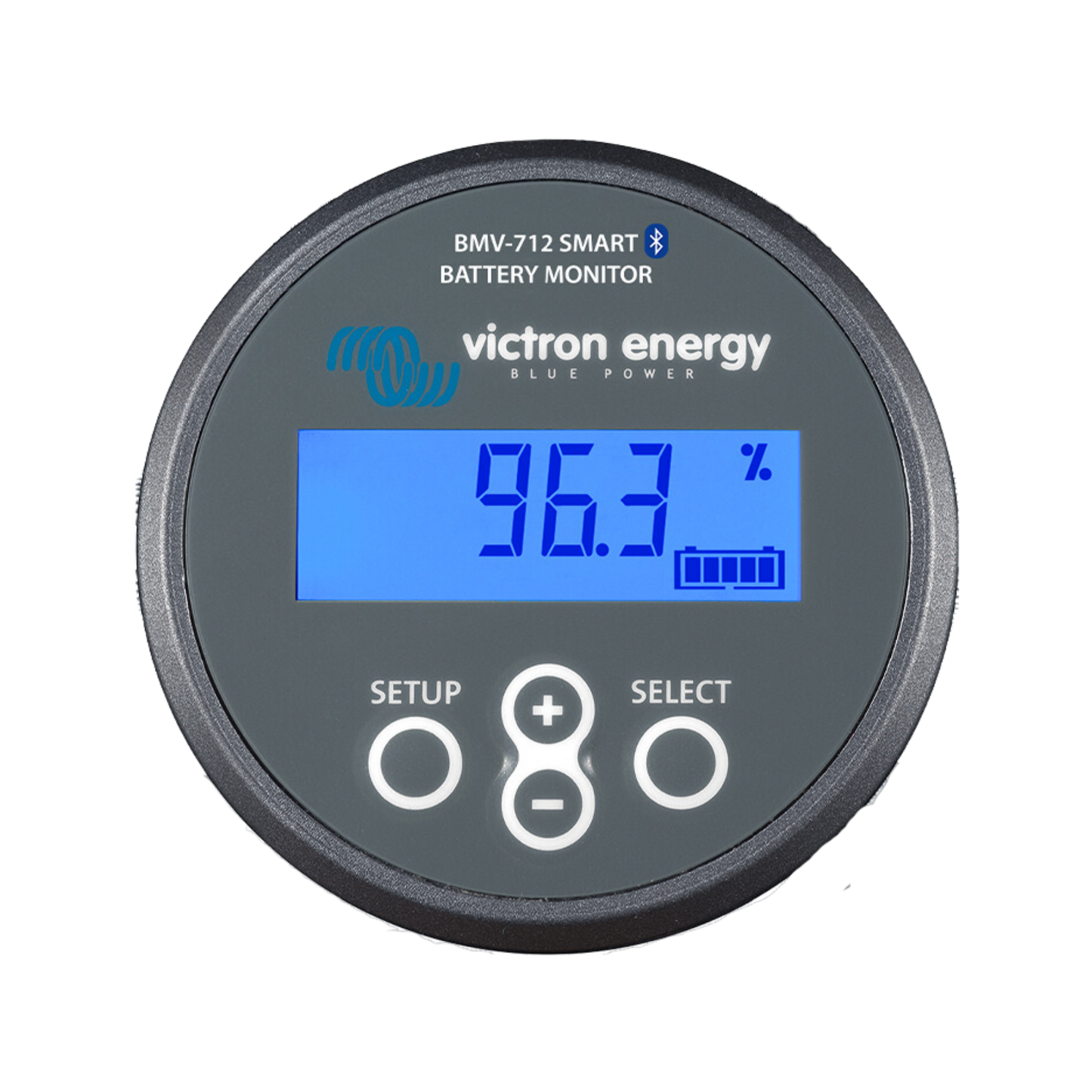

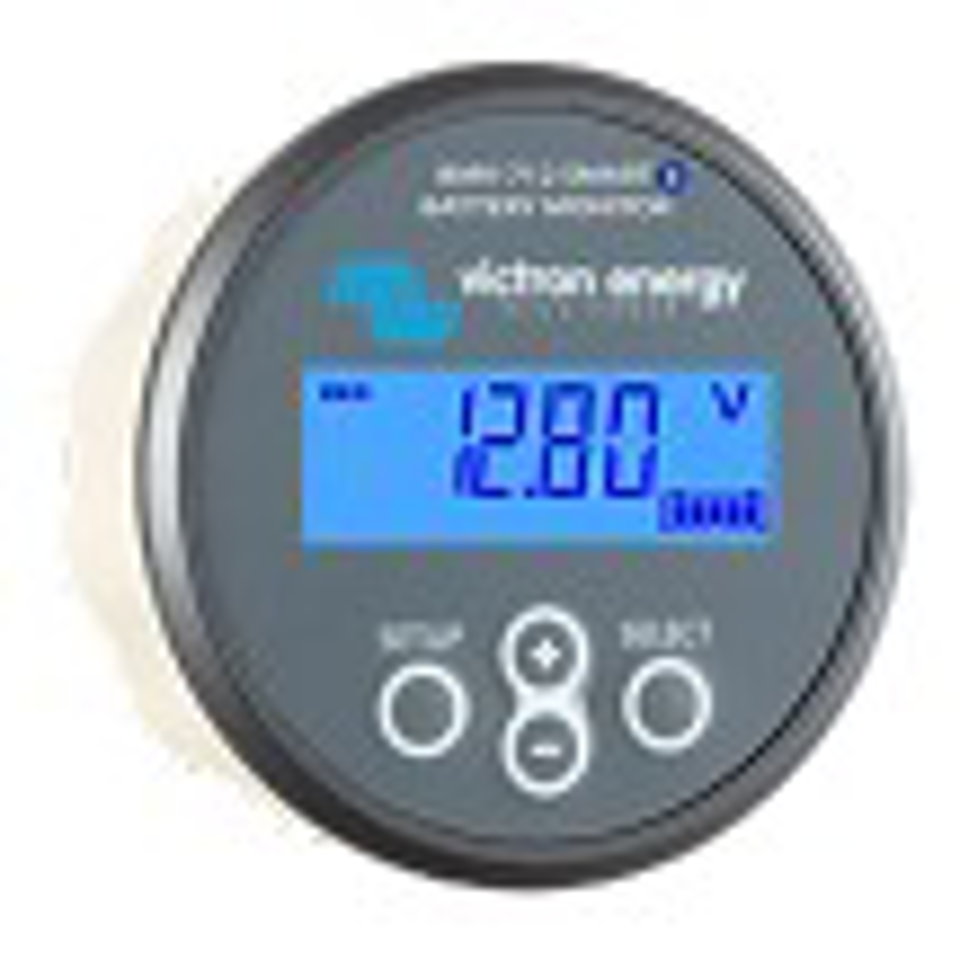

Battery Monitor BMV-712 Smart
$204.20
The Victron Energy BMV-712 Smart provides accurate, real-time monitoring of battery voltage, current, state of charge, amp-hours consumed, and estimated time remaining. Built-in Bluetooth allows wireless monitoring and configuration through the VictronConnect app.

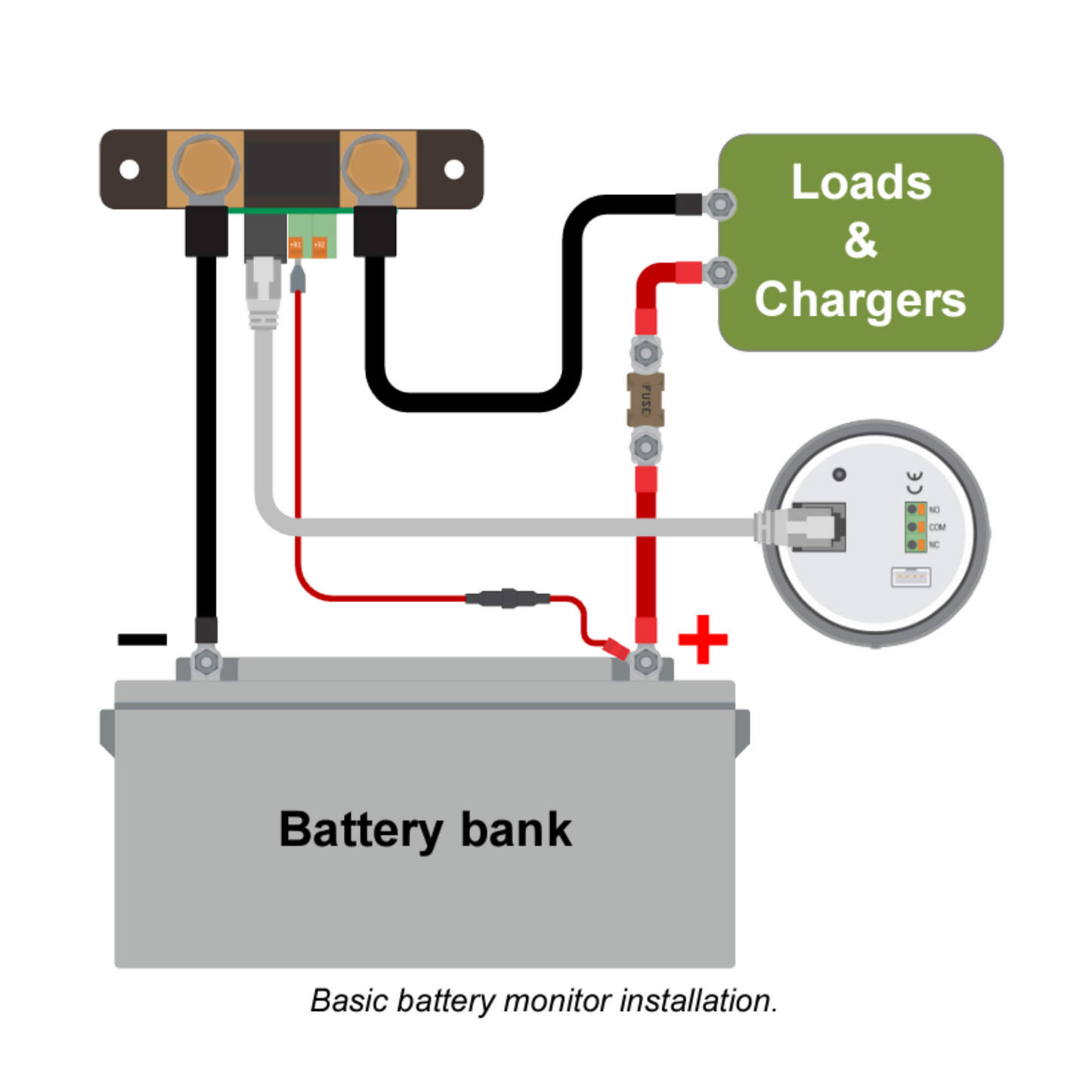

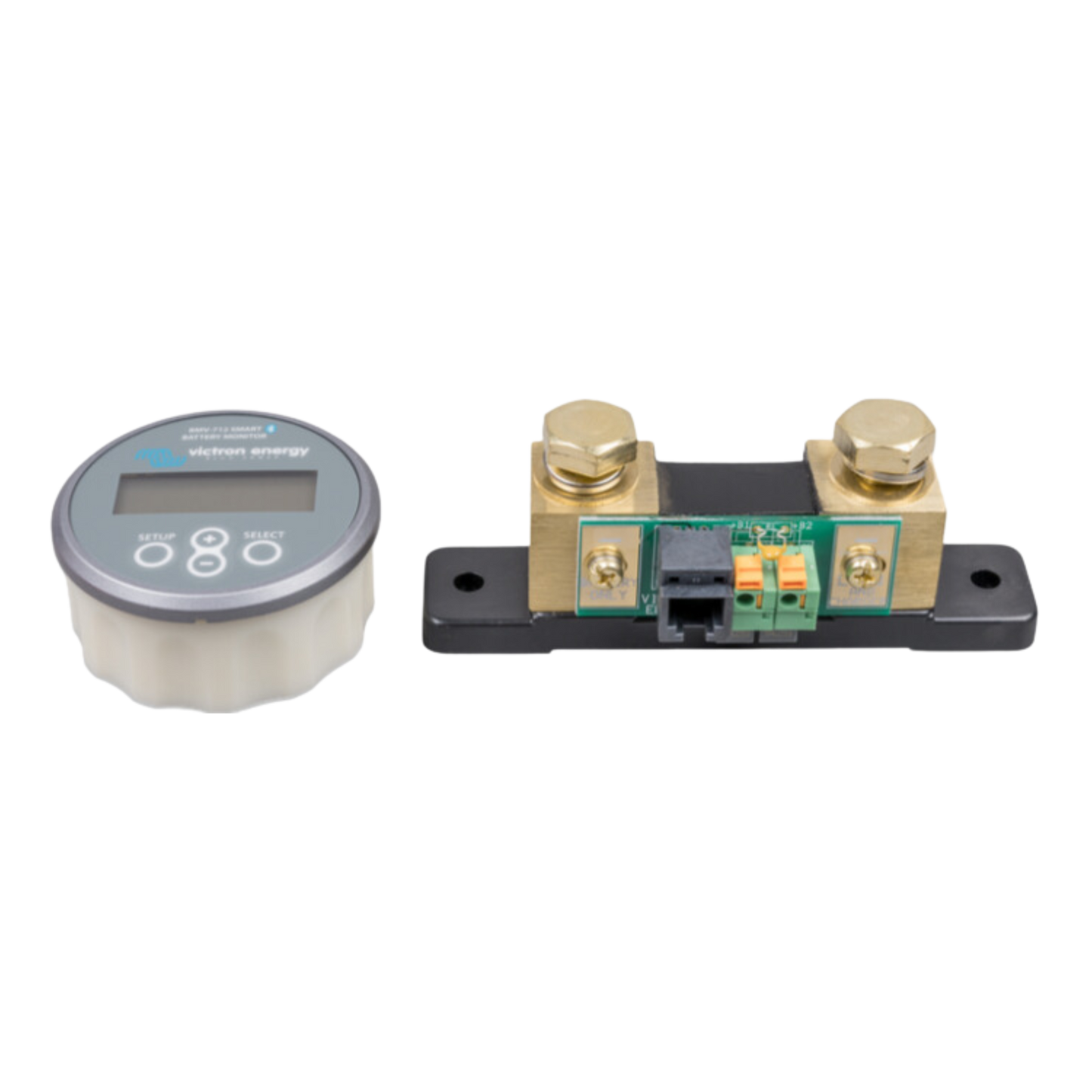

The included 500A/50mV shunt provides precise current measurement, while the auxiliary input can monitor a second battery, midpoint voltage, or battery temperature with an optional sensor.
Key Features
- Built-in Bluetooth
- Real-time voltage, current, and state-of-charge monitoring
- 500A/50mV shunt included
- Historical battery data

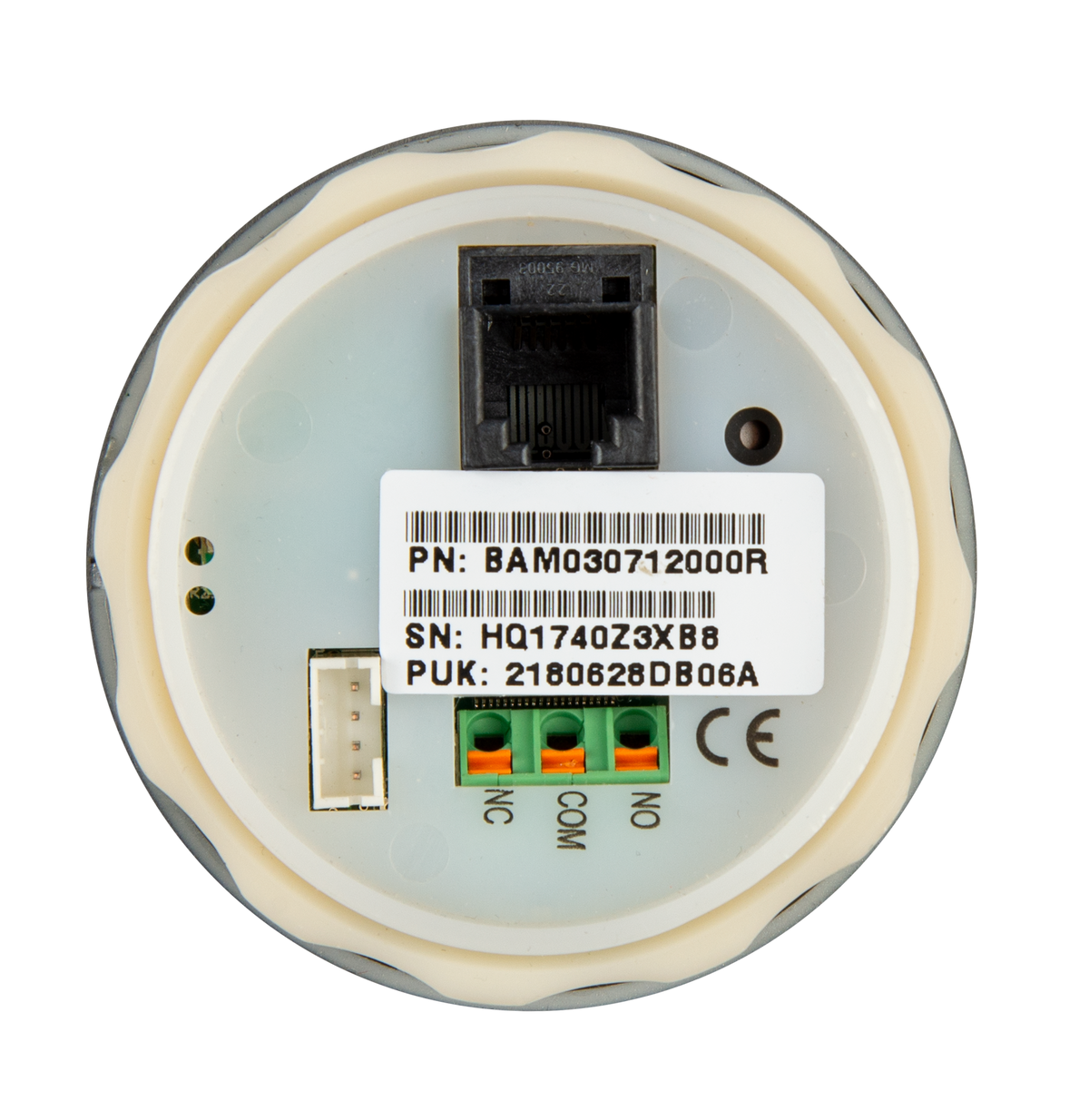

- Programmable alarm relay
- VE.Direct communication
- 6.5–70V DC operating range
- Battery capacity range: 1–9,999Ah
- Suitable for RV, marine, solar, off-grid, and backup power systems
Specifications
| Specification | Rating |
|---|---|
| Supply Voltage | 6.5–70V DC |
| Shunt | 500A / 50mV |
| Current Accuracy | ±0.4% |
| Voltage Accuracy | ±0.3% |
| Operating Temperature | -40°C to +50°C |
| Communication | VE.Direct / Bluetooth |
| Relay | 60V / 1A |

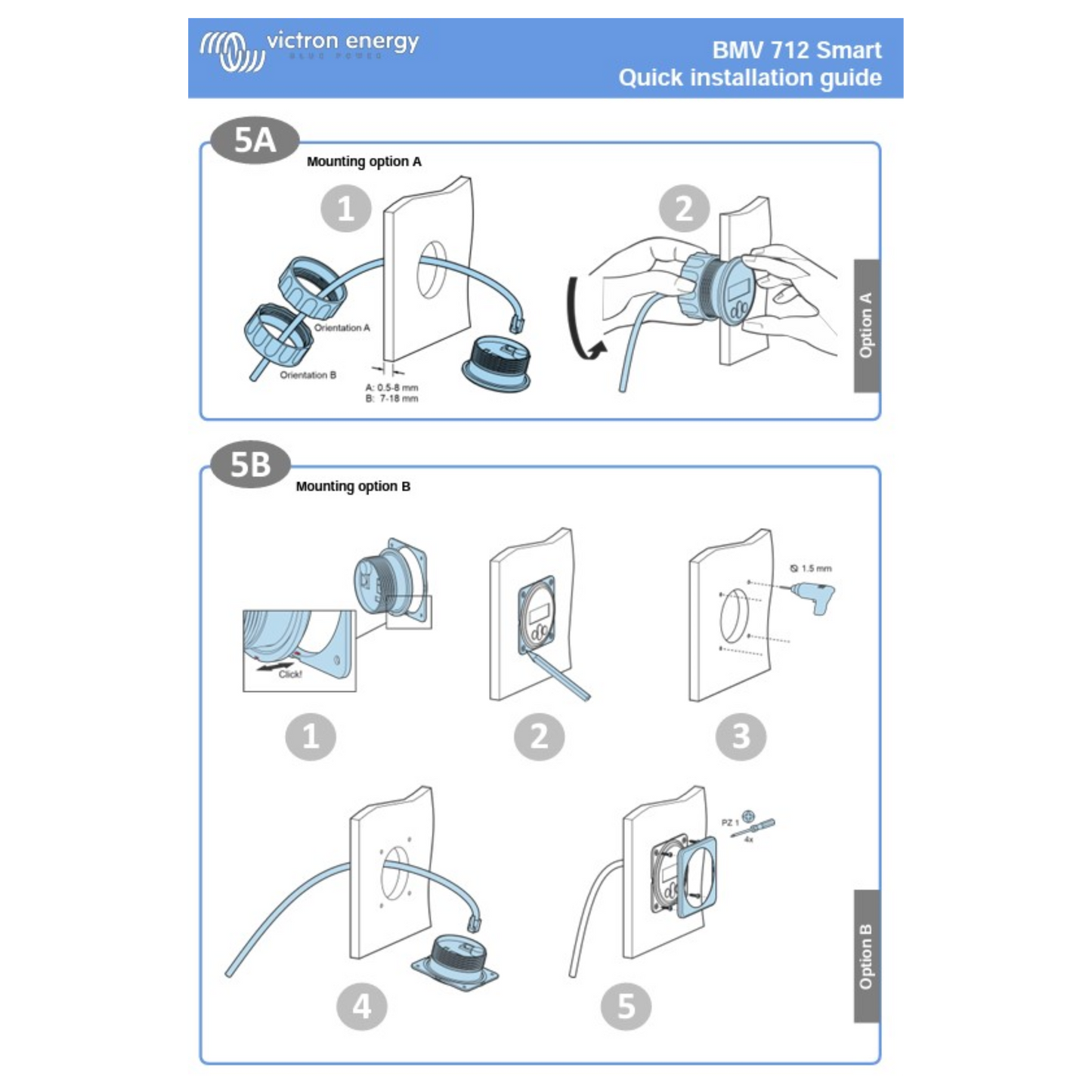

| Installation | Flush Mount |
Need compatibility or sizing help?Contact CBI Solar before ordering and we can help verify the application.
