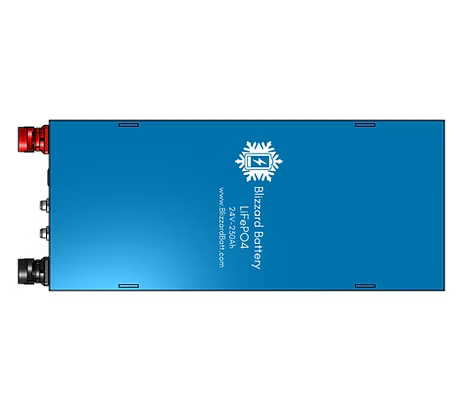

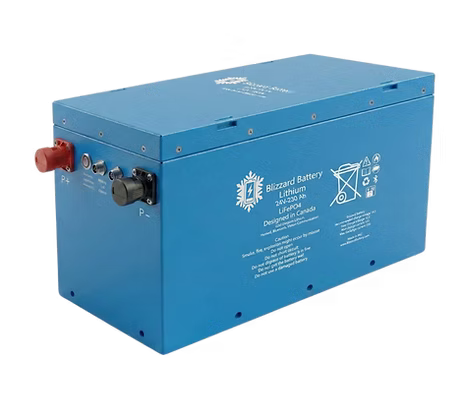

Blizzard Battery 24V 230Ah Lithium
$2,682.29
The Blizzard Batt 24V 230Ah LiFePO₄ battery is a high-capacity lithium energy-storage solution designed for larger RVs, marine house systems, cabins with inverters, off-grid solar installations, backup power systems, and mobile, commercial, and industrial applications.
With 230Ah of nominal capacity and 5,888Wh of rated energy, this battery provides substantial energy storage in a 24V system. It combines LiFePO₄ chemistry with integrated self-heating, Bluetooth connectivity, wireless BMS with CAN Bus, Victron Energy communication, and extreme-cold capability. The manufacturer specifies a cycle life of up to 4,000 cycles and an 11-year warranty.
Key Features
- 25.6V nominal battery voltage
- 230Ah nominal capacity
- 5,888Wh rated energy
- LiFePO₄ lithium iron phosphate chemistry
- Integrated self-heating
- Extreme-cold capability
- Bluetooth connectivity
- Wireless BMS
- CAN Bus communication
- Victron Energy communication compatibility
- Up to 4,000 cycles
- 400A maximum discharge rate for 5 seconds
- 150A maximum charge rate
- Up to 3 batteries permitted in parallel
- Series connection not permitted
- 11-year warranty
Recommended Applications
The Blizzard Batt 24V 230Ah is specified for a range of higher-capacity power systems, including:
- Large RVs
- Marine house battery systems
- Cabins with inverters
- Off-grid solar and energy-storage systems
- Backup power and UPS systems
- Mobile power applications
- Commercial power systems
- Industrial power applications

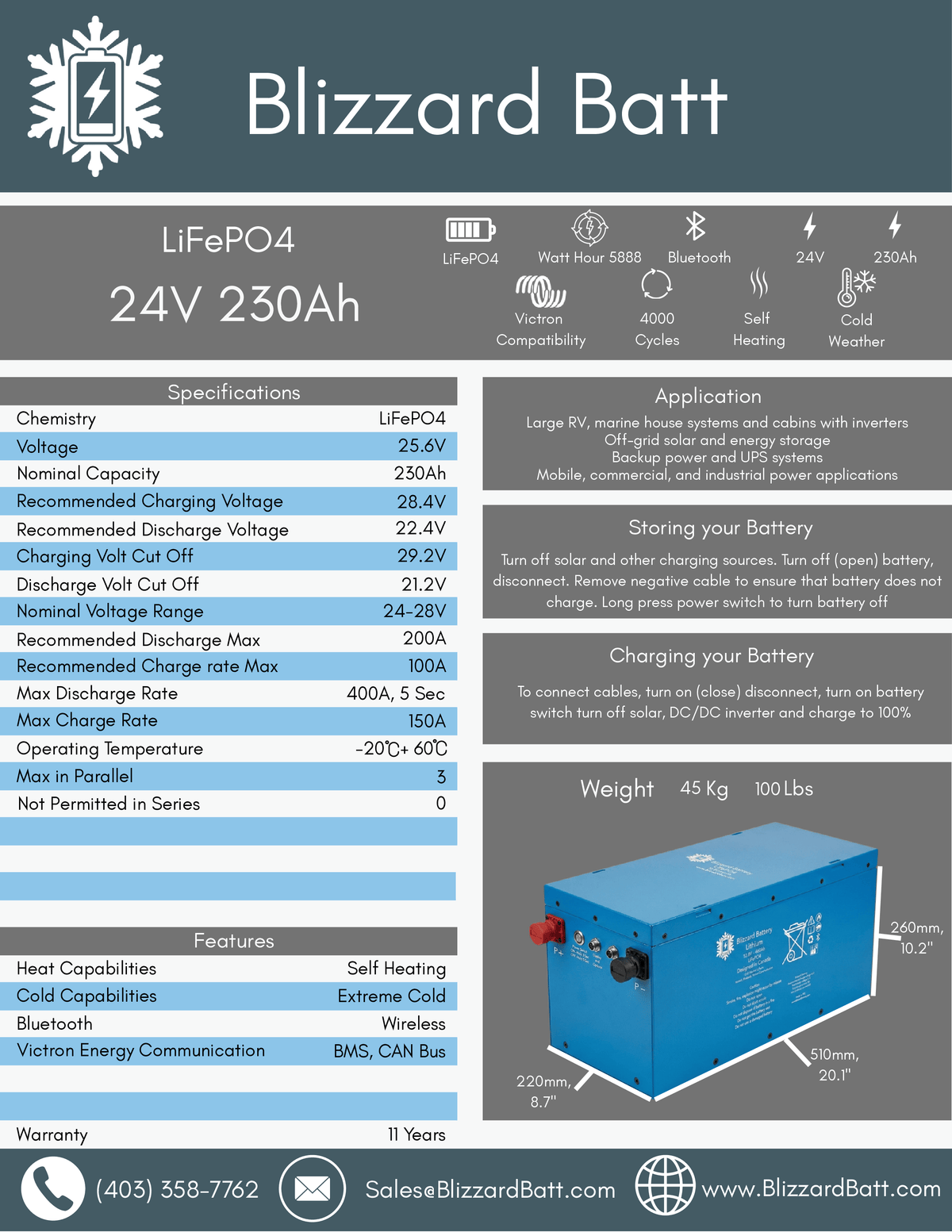

Specifications
| Specification | Rating |
|---|---|
| Battery Chemistry | LiFePO₄ |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 230Ah |
| Rated Energy | 5,888Wh |
| Recommended Charging Voltage | 28.4V |
| Recommended Discharge Voltage | 22.4V |
| Charging Voltage Cut-Off | 29.2V |
| Discharge Voltage Cut-Off | 21.2V |
| Nominal Voltage Range | 24–28V |
| Recommended Maximum Discharge | 200A |
| Recommended Maximum Charge Rate | 100A |
| Maximum Discharge Rate | 400A for 5 seconds |
| Maximum Charge Rate | 150A |
| Operating Temperature | −20°C to +60°C |
| Maximum Batteries in Parallel | 3 |
| Series Connection | Not permitted |
| Weight | 45 kg / 100 lb |
| Dimensions | 510 × 260 × 220 mm / 20.1 × 10.2 × 8.7 in |
| Cycle Life | Up to 4,000 cycles |
| Warranty | 11 years |
| BMS | Wireless BMS / CAN Bus |
| Bluetooth | Yes |
| Victron Energy Communication | Yes |
| Self-Heating | Yes |
| Cold Capability | Extreme cold |
High-Capacity 24V Energy Storage
With 5,888Wh of rated energy, the Blizzard Batt 24V 230Ah provides substantial energy storage for systems designed around a 24V battery architecture.
Its 24V configuration can be particularly useful for larger power systems where higher system voltage is desirable. The manufacturer specifies a 200A recommended maximum discharge and a 400A maximum discharge rate for 5 seconds.
Cold-Weather & Self-Heating Capability
The Blizzard Batt incorporates self-heating technology and is specified for extreme-cold capability. The manufacturer lists an operating temperature range of −20°C to +60°C.
This makes the battery suitable for mobile, marine, off-grid, and other installations where the battery may be exposed to significant temperature variations.
Bluetooth, BMS & Victron Compatibility
The battery includes Bluetooth connectivity and a wireless BMS with CAN Bus. It also provides Victron Energy communication, allowing integration with compatible Victron-based energy-management and monitoring systems.
Parallel Configuration
The manufacturer specifies a maximum of three batteries in parallel. Series connection is explicitly listed as not permitted.
Any multiple-battery installation should follow the manufacturer's requirements for wiring, protection, charging equipment, and battery management.
Charging & Storage
For charging, the manufacturer's instructions specify connecting the cables, closing the battery disconnect, turning on the battery switch, turning off solar, DC/DC, and inverter charging sources during connection, and charging the battery to 100%.
For storage, the instructions specify turning off solar and other charging sources, opening the battery disconnect, removing the negative cable to ensure the battery does not charge, and using the power switch to turn the battery off.
Built for Larger 24V Power Systems
The Blizzard Batt 24V 230Ah combines 5,888Wh of rated energy, high short-duration discharge capability, self-heating, Bluetooth monitoring, CAN Bus communication, Victron compatibility, and extreme-cold capability in a 24V battery platform.
It is designed for larger RV, marine, cabin, off-grid, backup, commercial, and industrial power applications.
