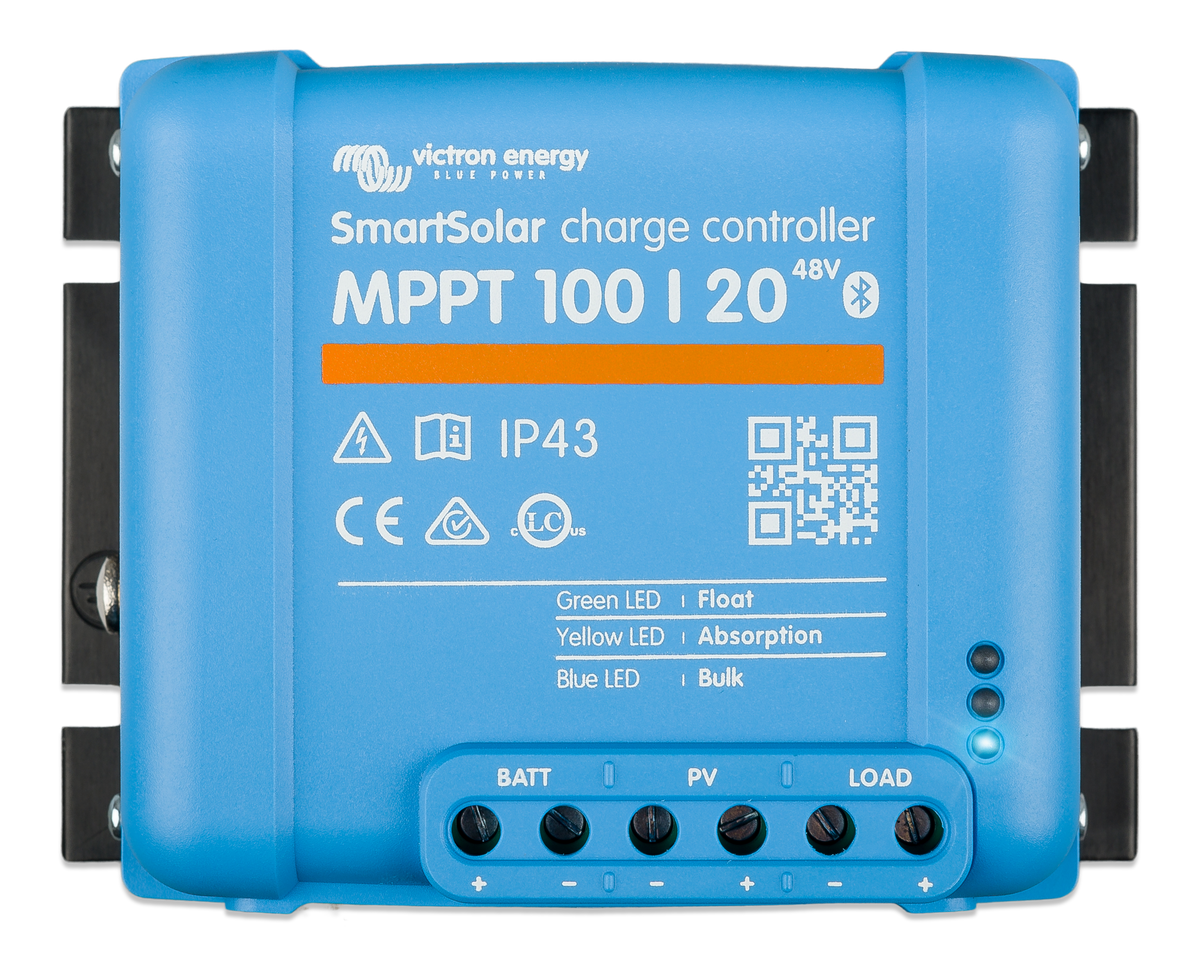

Charge Controller, Smart Solar MPPT 100/20 12- 48V - Victron

$127.63

The Victron SmartSolar MPPT 100/20 is a compact, high-efficiency solar charge controller designed for 12V, 24V, and 48V battery systems. Its ultra-fast Maximum Power Point Tracking technology helps maximize solar harvest, while built-in Bluetooth provides convenient monitoring and configuration through the VictronConnect app.

Key Features

- 20A rated charge current
- 100V maximum PV open-circuit voltage
- Automatic 12V / 24V / 48V battery voltage selection
- Nominal PV power up to 290W at 12V, 580W at 24V, and 1160W at 48V
- Up to 98% peak efficiency
- Built-in Bluetooth for VictronConnect
- VE.Direct communication port
- Multi-stage adaptive charging algorithm
- Intelligent BatteryLife load management
- Fully discharged battery recovery function
- 6 mm² / AWG10 power terminals
- Operating temperature from -30°C to +60°C
- Protection against output short circuit and over-temperature
- Suitable for RV, marine, off-grid, and mobile solar systems

Need compatibility or sizing help?Contact CBI Solar before ordering and we can help verify the application.
