Pylontech US5000
$2,325.00

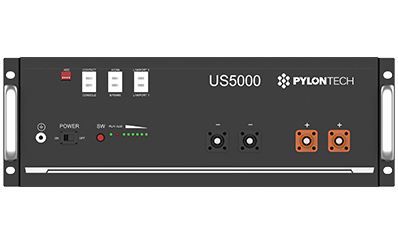

The Pylontech US5000 is a low-voltage, rack-mounted lithium battery designed for residential energy storage, backup power, and off-grid applications. Built for installation in standard 19-inch rack systems, the US5000 provides 4.8kWh of nominal battery capacity and 4.56kWh of usable capacity in a compact 39.7kg module.
The battery is designed to provide scalable energy storage, with up to 20 US5000 modules permitted in a single string. Communication is provided through RS485 and CAN, allowing integration with compatible energy-storage equipment and system controllers.
Key Features
- 48V-class low-voltage energy-storage battery
- 4.8kWh nominal battery capacity
- 4.56kWh usable capacity
- 95% depth of discharge
- 19-inch rack compatible
- Rack-mountable modular design
- Scalable system architecture
- Up to 20 modules in a single string
- RS485 and CAN communication
- IP20 enclosure rating
- 39.7kg module weight
- Designed for residential backup and off-grid systems
- Up to 15-year design life at 25°C
- More than 6,000 cycles at 25°C
- UL1973, UL9540A, IEC62619, IEC63056, IEC61000-6-2/3 and UN38.3 certifications listed by the manufacturer
Recommended Applications
The US5000 is designed for applications including:
- Residential energy storage
- Backup power systems
- Off-grid solar systems
- Home energy-storage systems
- Rack-mounted battery installations
- Modular energy-storage systems
- Systems requiring scalable battery capacity
Specifications
| Specification | Rating |
|---|---|
| Product | US5000 |
| Battery Type | Low-voltage / rack-mounted ESS battery |
| Nominal Voltage | 48V-class / 51.2V |
| Nominal Capacity | 4.8kWh |
| Usable Capacity | 4.56kWh |
| Depth of Discharge | 95% |
| Dimensions (W × D × H) | 442 × 420 × 161 mm |
| Weight | 39.7 kg |
| Rack Compatibility | 19-inch |
| Communication | RS485 / CAN |
| IP Rating | IP20 |
| Maximum Modules per String | 20 |
| Charge Temperature | −10°C to +55°C |
| Discharge Temperature | −10°C to +55°C |
| Storage Temperature | −20°C to +60°C |
| Humidity | 5–95% RH, non-condensing |
| Short-Circuit Current | <200A / 1ms |
| Maximum Altitude | ≤4,000m |
| Design Life | 15 years @ 25°C |
| Cycle Life | >6,000 cycles @ 25°C |
| Certifications | UL1973 / UL9540A / IEC62619 / IEC63056 / IEC61000-6-2/3 / UN38.3 |

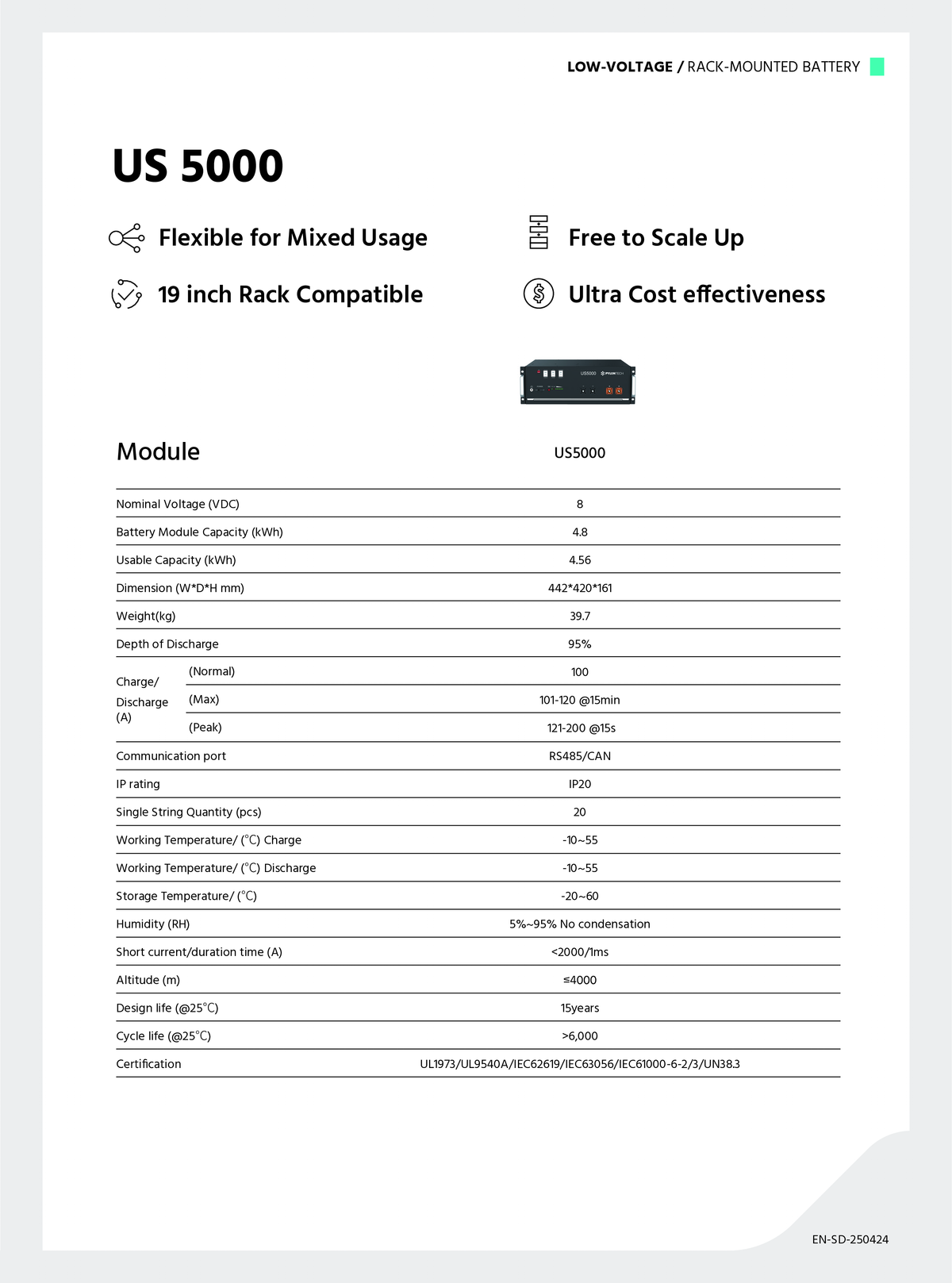

The manufacturer's specification sheet identifies the module as a 4.8kWh battery with 4.56kWh usable capacity, 95% depth of discharge, and dimensions of 442 × 420 × 161mm.
Modular & Scalable Storage
The US5000 is designed around a modular rack-mounted architecture. Its 19-inch rack compatibility allows multiple battery modules to be installed together in an organized battery cabinet or rack system.
The specification sheet permits up to 20 US5000 modules in a single string, providing substantial scalability as system energy requirements increase.
Communication & System Integration
The battery provides both RS485 and CAN communication ports for integration with compatible energy-storage equipment and system controllers.
This communication capability allows the battery to participate in managed energy-storage systems where battery status and operating parameters are exchanged between the battery and other system components.
Temperature & Environmental Performance
The US5000 is specified for charging and discharging from −10°C to +55°C, with a storage temperature range of −20°C to +60°C.
The specification sheet lists a humidity range of 5% to 95% RH, non-condensing, and an altitude rating of up to 4,000 metres. The battery has an IP20 enclosure rating, so installation should provide appropriate protection from water and outdoor exposure.
Long Service Life
At 25°C, the manufacturer specifies a design life of 15 years and a cycle life of more than 6,000 cycles. Combined with the battery's 95% specified depth of discharge, this makes the US5000 suitable for applications involving regular cycling as well as standby and backup operation.

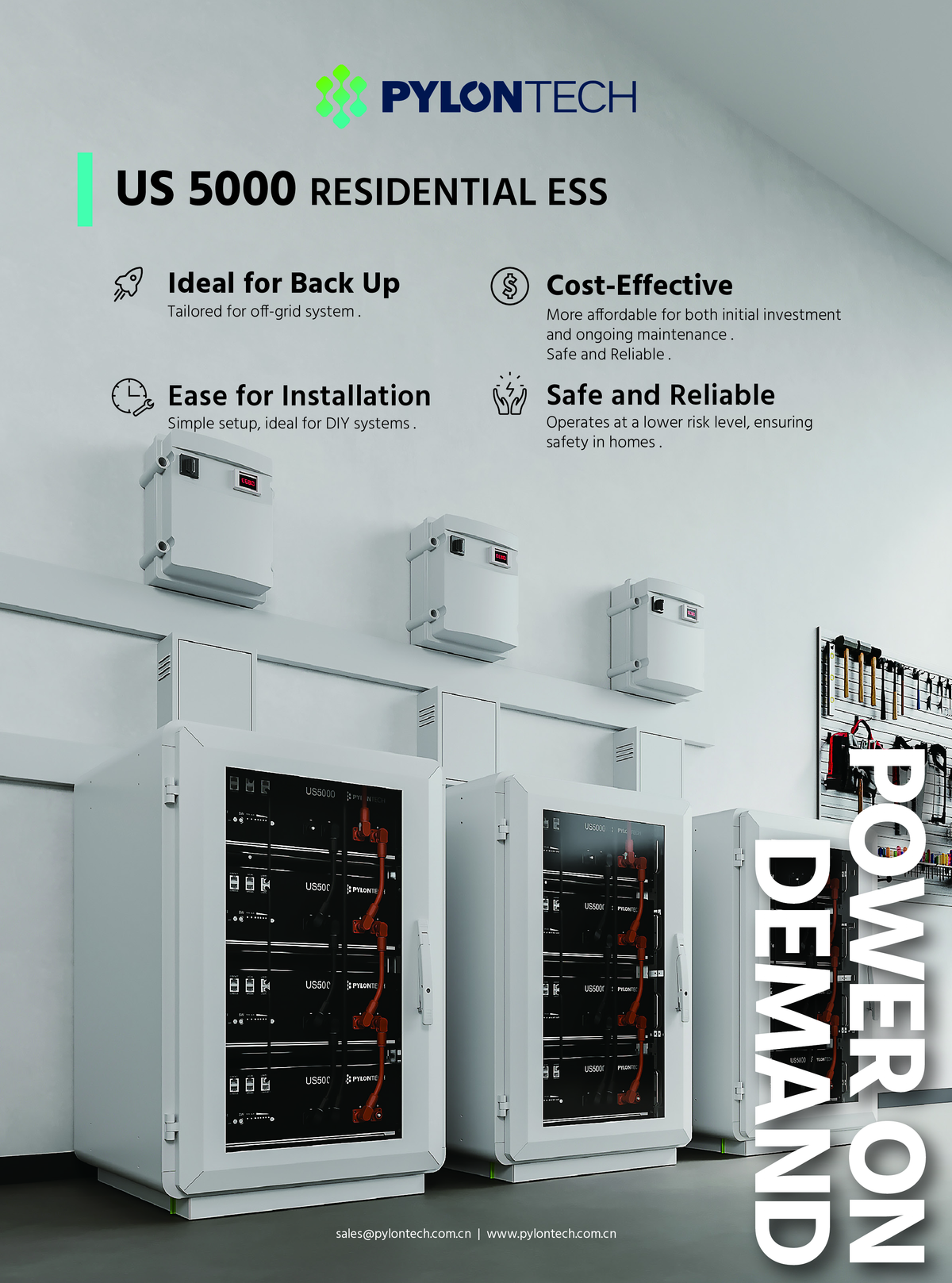

Designed for Residential & Off-Grid Energy Storage
The Pylontech US5000 combines a compact rack-mounted format with scalable capacity, high usable energy, multiple communication interfaces, and a long specified service life. Its modular design makes it suitable for residential backup, off-grid solar, and other low-voltage energy-storage systems where additional battery capacity may be added as system requirements grow.
