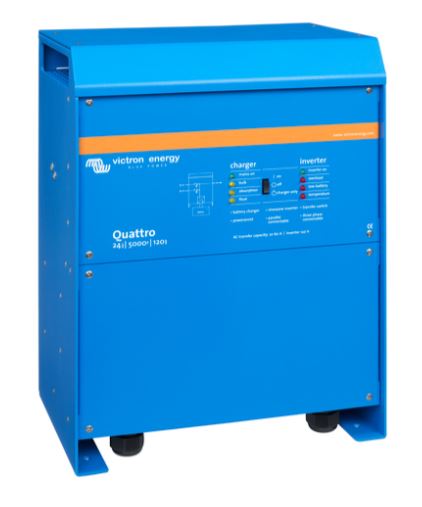

Quattro 24/5000/120-100/100 120V VE.Bus, Victron

The Victron Quattro 24/5000/120-100/100 120V is a high-capacity inverter/charger designed for demanding off-grid, marine, backup, and professional power systems. It combines a 5000VA inverter, 120A battery charger, and two independent 100A AC inputs with an integrated transfer switch for automatic operation between utility, shore, or generator power sources.

PowerControl and PowerAssist help manage limited AC sources by reducing charging demand or supplementing available AC power with energy from the battery when required.

Key Features

- 24V DC battery system
- 5000VA inverter capacity
- 4000W continuous output at 25°C
- 3700W continuous output at 40°C
- 3000W continuous output at 65°C
- 10,000W peak power
- 120V AC output at 60Hz
- 120A house battery charger
- 4A starter battery charging output
- Two independent AC inputs
- 2 × 100A maximum AC feed-through
- Integrated automatic transfer switch
- PowerControl and PowerAssist
- Two AC outputs
- Less than 20 ms transfer time on the main output
- Up to 94% maximum efficiency
- VE.Bus communication for monitoring and system integration
- Supports parallel, split-phase, and three-phase configurations
- Remote on/off capability
- Three programmable relays
- Lithium-ion battery compatible
- IP21 enclosure rating
- Operating temperature from -40°C to +65°C

Suitable for larger RV, marine, off-grid, backup, telecommunications, and professional energy systems requiring substantial inverter capacity and high-rate 24V battery charging.
