Description

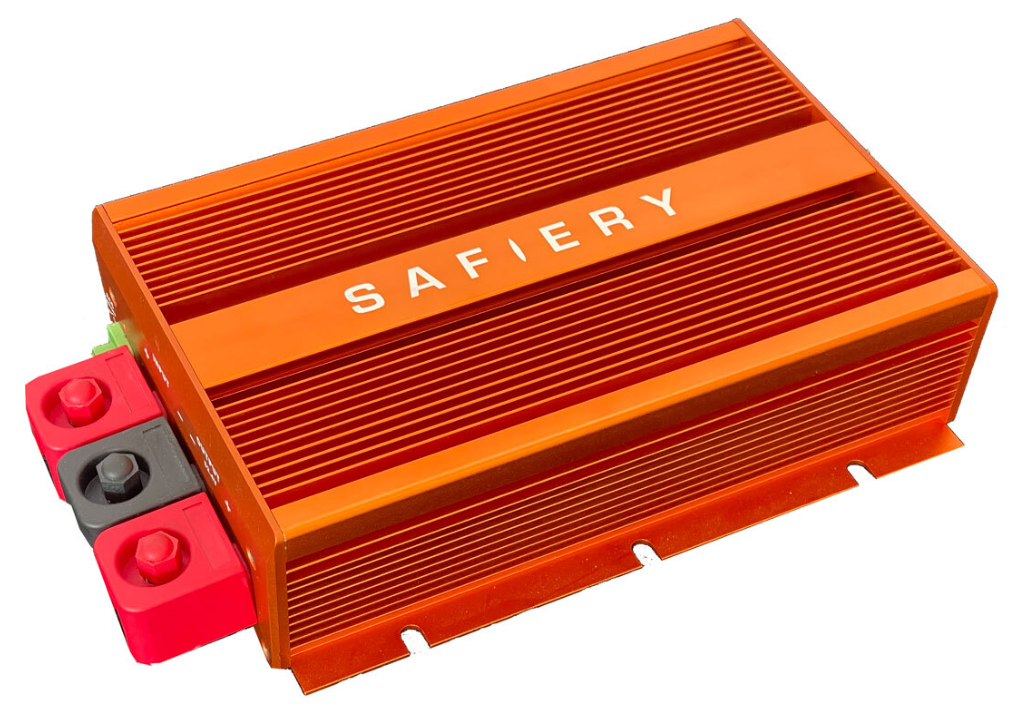

The 1:4 Input Voltage 1000 Watt Single SAFIERY DC/DC converter provides a precisely regulated dc charging output. The output voltage shares a common negative (chassis ground) with the input. This allows for best practice of both 12V negatives and 48V negatives to a common ground.  The 1000 Watt SAFIERY meets the most rigorous performance standards in an industry-standard footprint for mobile (12Vin) and rugged near-defense applications.

The Input "auto-activate" function is designed for both "smart" and "non-smart" alternators. There is a trigger voltage that is checked periodically and a startup routine is followed. The algorithm is proprietary.

The 4:1 Input Voltage 1000W SAFIERY includes a charging control strategy for selected 48V Lithium batteries, It works Great with Pylontech US3000C

• Constant Current Charge at 52.4V
• Constant Voltage Float at 50.5V
• These are fixed and not adjustable.

Studs with protective caps are provided to allow easy mounting. The case is a mega heatsink for extended temperature operation.

The converter's extremely high efficiency and high power density are accomplished through the use of high-efficiency synchronous rectification technology, advanced electronic circuit, packaging, and thermal design thus resulting in a high-reliability product. The converter operates at a fixed frequency and follows conservative component de-rating guidelines.

Simple "Green" and "Red" LED to indicate operation.

Designed in Australia, manufactured in China. This is NOT a generic China-sourced product. This is a professionally designed product with control algorithms based on our Scotty experience. The embedded software is complex but the operation is simple!

Features

• 100% full-rated power
• 100% full stable output current
• Waterproof sealed IP67
• High power density - no fan
• Small size 230 x 150 x 65 mm plus cable lugs
• Efficiency up to 96%
• Excellent thermal performance with metal case
• Encapsulated
• Over-Current and Short Circuit Protection
• Over-Temperature protection
• Auto-restart
• Monotonic startup into pre bias
• Constant frequency
• Remote ON/OFF is possible
• Good shock and vibration damping
• Temperature Range -40ºC to +95ºC.
• RoHS Compliant

Electrical

• Efficiency: 96%
• Ripple: 200mVp
• Line Regulation: ±0.2%
• Load Regulation: ±0.2%
• Voltage Accuracy:  ±1.5%
• Enclosures: IP68
• Net Weight: 2.2kg

Compliance Standards:

CE, ROHS

Compliance Certificates:

• EN 61000-6-3:2007/A1:2011/AC:2012
• EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011

Warranty: 3-years

This item is a demo and is discounted as such.
